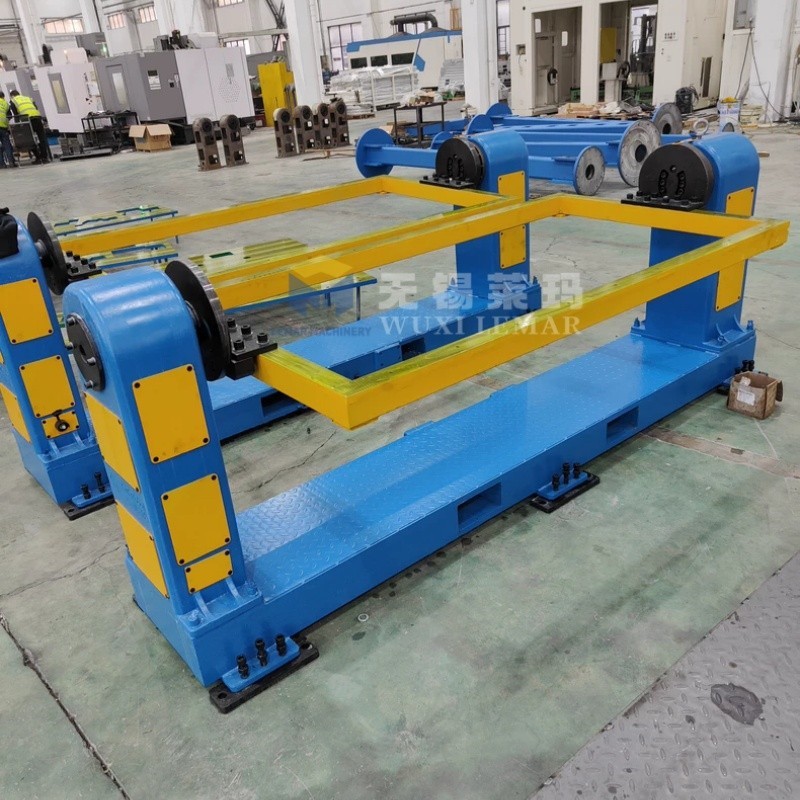

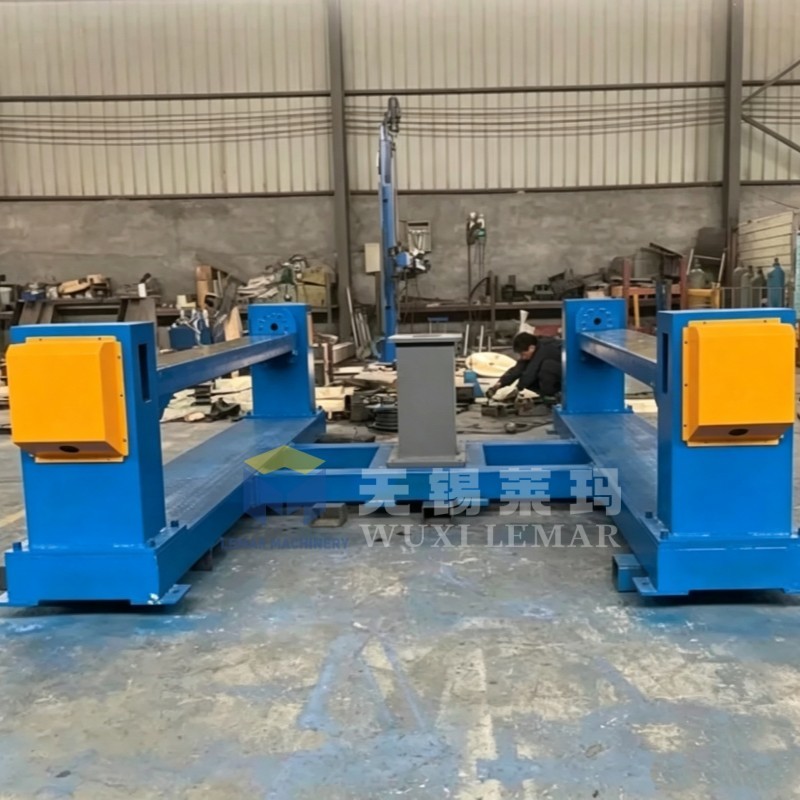

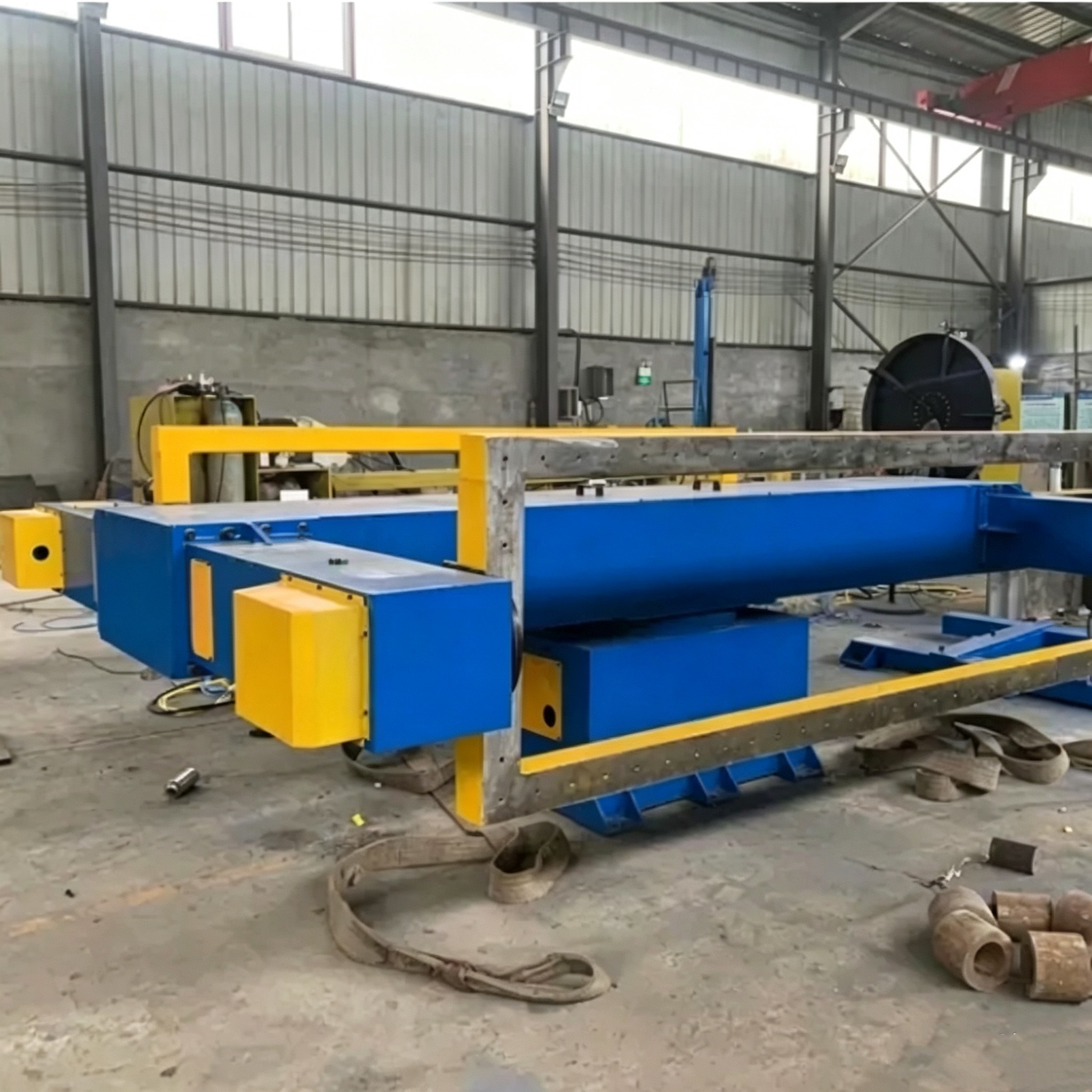

5 Ton Head Tail Welding Positioner, Robot Linkable Automatic Rotary Positioner for Cylinder Vessel Welding

The 5 Ton Head and Tail Welding Positioner is professional welding auxiliary equipment designed to support linkage with welding robot systems. Specifically engineered for rotary positioning of long cylindrical, tubular, and vessel workpieces, it features a dual-head synchronous driving structure for stable rotation and uniform speed. This positioner can operate independently or coordinate with welding robots, welding manipulators, and welding rotators to achieve automatic circumferential and longitudinal welding. Widely used in boiler, pressure vessel, pipeline, and environmental equipment manufacturing.

• 5-ton heavy load capacity with stable bearing for medium-large cylindrical workpieces
• Dual motor synchronous drive for smooth rotation without shaking
• Optional servo version for robot synchronous linkage and coordinated motion
• Variable frequency speed regulation for adjustable welding rotating speed
• High precision rotating shaft ensures uniform welding bead
• Whole machine stress-relieved frame for durability and low deformation
• Simple PLC + button control for easy operation
• Adjustable center distance to accommodate different workpiece lengths
• Safety limit and emergency stop design for safe production

Boiler cylinder, pressure vessel, stainless steel tank, duct cylinder, pipe shell, environmental protection equipment, new energy cylindrical workpieces, mechanical structural parts, and robotic welding workstations.

• Raw material inspection for thick steel plate and core motor parts
• Overall frame stress relief treatment to avoid deformation
• Assembly precision calibration and rotating debugging
• No-load & full-load running test before delivery
• Electrical safety and overall dimension final inspection

• Servo drive system for robot linkage & coordinated motion
• PLC touch screen control system
• Automatic welding linkage system
• Custom adjustable base frame
• Anti-slip fixture positioning tool
• Wireless remote controller

Main machine wrapped with anti-rust film and foam, electric parts packed in export plywood case. Standard sea export package, suitable for long-distance transportation. 20 working days delivery after deposit.
