Customized D28 Modular 3D Welding Table For All Fabrication Assembly Jobs
Product Overview
The Customized D28 Modular 3D Welding Table is a fully configurable work system designed to support every type of fabrication and assembly job across diverse industrial applications. Built around the industry-standard D28 mm fixturing hole pattern, this table provides three-dimensional access across the tabletop and all four vertical sides, enabling secure workpiece positioning from virtually any angle.
Every dimension, thickness, surface treatment, and feature can be tailored to match your specific workflow requirements—whether you need a compact unit for a small workshop or an oversized table for heavy structural assembly. The modular D28 ecosystem works with a complete range of clamps, stops, angle plates, and support brackets, allowing operators to set up custom fixture configurations quickly and accurately for any fabrication or assembly project.
Product Advantages
-
Fully Customized to Your Exact Needs
Every specification from table size and thickness to hole pattern and surface finish is built around your specific fabrication and assembly requirements, so the table works perfectly for your operations from day one.
-
Industry-Standard D28 Fixture Compatibility
The 28 mm precision-bored holes on a 100 mm grid follow the most widely adopted fixturing standard, ensuring compatibility with thousands of existing D28 accessories and protecting your tooling investment.
-
True 3D Multi-Surface Positioning
Grid-patterned holes on the tabletop and vertical side surfaces allow clamping and support from every direction, making complex three-dimensional fabrication and assembly jobs far easier to set up than on flat 2D tables.
-
Fast Modular Setup for Any Job Type
The plug-and-play D28 fixturing system lets operators reconfigure the entire work surface for a new project in minutes, whether you are switching between small batch assembly, custom fabrication, or structural welding jobs.
-
Built for All Fabrication and Assembly Work
From light sheet metal assembly to heavy structural fabrication, this table scales to match your workload. Customize load capacity, thickness, and size to handle every job in your production pipeline with one flexible platform.
-
Engineering Support Included
Our technical team works with you to evaluate your workflow, recommend optimal specifications, and deliver a table that maximizes efficiency for your specific fabrication and assembly operations—no guesswork required.
Application Scenarios
The Customized D28 Modular 3D Welding Table serves virtually every sector of metal fabrication and assembly where standard tables fall short of specific operational needs. General fabrication shops order custom-sized tables with integrated accessory storage to maximize workspace efficiency for their particular mix of custom projects.
Structural steel fabricators specify extra-large, extra-thick tables designed for beam, column, and truss assembly where standard sizes cannot accommodate full-length workpieces. Sheet metal and enclosure manufacturers choose precision-flat tables with custom hole patterns that align perfectly with their standard assembly fixtures for consistent production output.
Assembly operations across automotive, aerospace, and machinery industries order tables with integrated mounting positions for robotic arms, positioners, and material handling equipment to create fully integrated work cells. Additional applications include pipe and tube fabrication shops needing specialized V-block and clamp configurations; agricultural equipment manufacturers building large frame assemblies; trailer and body shops requiring extended table lengths; technical training centers needing education-optimized configurations; and research facilities with unusual workpiece or process requirements.

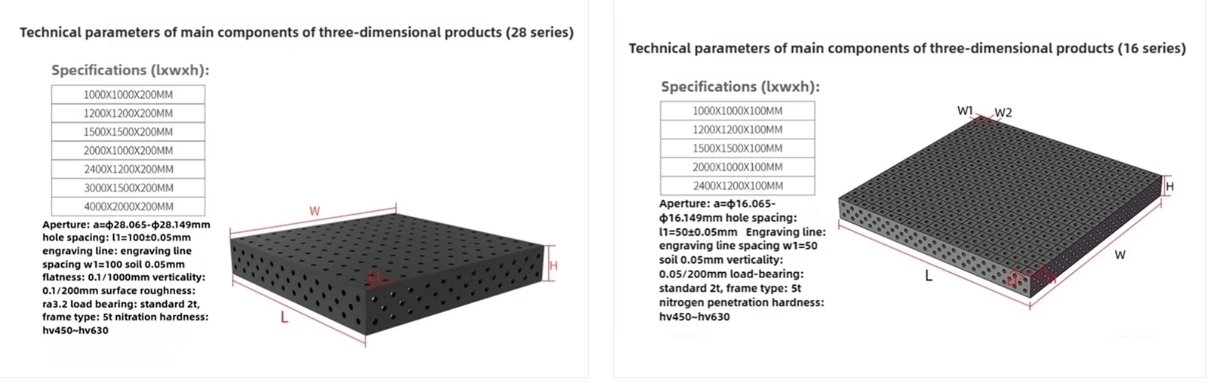

Technical Specifications
| Item |
Standard Parameter |
| Base Material |
Q355 low-alloy high-strength steel |
| Surface Treatment |
Five-sided full-depth integral nitriding |
| Surface Hardness |
HV 550-700 |
| Hole Specification |
D28 (28mm diameter), grid spacing 100±0.05mm |
| Flatness Accuracy |
≤0.1mm / 1000mm |
| Hole Center Tolerance |
±0.03mm |
| Tabletop Thickness |
25mm |
| Max Static Load |
12 tons |
| Working Surfaces |
Five-sided operation (top plus four vertical sides) |
| Custom Service |
Multiple standard sizes |

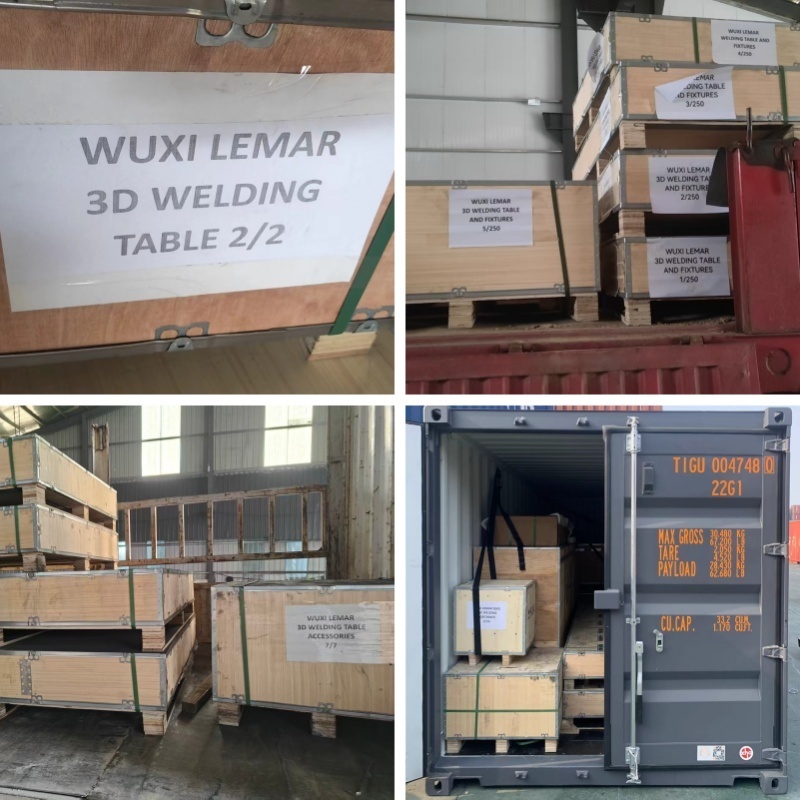

Export Packaging
Tabletop: The main welding table body is packed in a heavy-duty, fumigation-free solid wood plywood crate, featuring internal foam protection and reinforced corner bracing to prevent damage during ocean transit.
Fixture Kit: Components are individually wrapped in anti-rust paper and organized within a metal tool case.
Legs and Accessories: Packed in separate boxes to prevent scratching the nitrided tabletop surface during transport.
Frequently Asked Questions
Q1: What does D28 mean and why is it important?
A: D28 refers to the 28-millimeter diameter of the precision-bored fixturing holes. This is the most widely used industry standard for 3D welding table systems, ensuring compatibility with a vast range of clamping and positioning accessories from multiple manufacturers.
Q2: How customizable is the table really?
A: Nearly every aspect can be customized: dimensions, thickness, material grade, surface treatment, flatness grade, hole pattern configuration, leg design, height, mobility options, and integrated features such as vise mounts, shelves, or cutouts. We build it to your specifications.
Q3: How long does it take to receive a custom D28 table?
A: Standard custom orders typically take 3 to 6 weeks from design confirmation to shipment, depending on complexity, size, and selected features. Rush production options are available for urgent projects—please inquire for details.
Q4: Will my existing D28 accessories work with a custom table?
A: Yes. All our D28 tables follow the standard 50 mm grid spacing and 28 mm hole diameter, so your existing D28 clamps, stops, and fixturing components will be fully compatible with your new custom table.
Q5: Do you provide design drawings before production starts?
A: Yes, every custom order includes detailed CAD drawings for your review and approval before manufacturing begins. We make revisions as needed until you are fully satisfied with the design and specifications.
Q6: Can custom tables be certified to specific standards?
A: Yes, we can provide flatness inspection reports, material certificates, and compliance with standards such as CE, ISO, or specific industry requirements upon request. Special certifications can be discussed during the design phase.
Ready to Upgrade Your Fabrication Shop?
Thank you for considering our Customized D28 Modular 3D Welding Table for your fabrication and assembly operations. We understand that every workshop and production line has unique needs, and our engineering team is ready to build the perfect table for your specific applications.
Whether you have a clear design in mind or need guidance to determine the optimal size, thickness, and features for your workflow, we are here to help. Send us your requirements, workpiece specifications, and facility constraints today, and our specialists will respond within 24 hours with a detailed proposal, design concept, and competitive quote tailored exactly to your fabrication and assembly needs.
