1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding

  • 1
  • 2
  • 3

Supply Ability : 500 units/month

Linear Speed : 80-160rpm

Model Number : KTG-1

Max Loadimg Weight : 1000Kg

MOQ : 1

Delivery Time : 10-20 work days

Wheel Material : Rubber or Steel,or Both

Color : Customized

Payment Terms : D/A,L/C,D/P,T/T,

Steel Wheel Width : 280mm

Price : 500-1000USD

Suitable Diameter of Tank : 25-800mm

Certification : CE

Adjustable Mode : Adjustable Welding Rotator

Brand Name : LEMAR

Model : KTG-1

Place of Origin : WUXI

Wheel Quantity : 4 Wheels

Packaging Details : 73.00cm * 59.00cm * 60.00cm

Contact Now

1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding

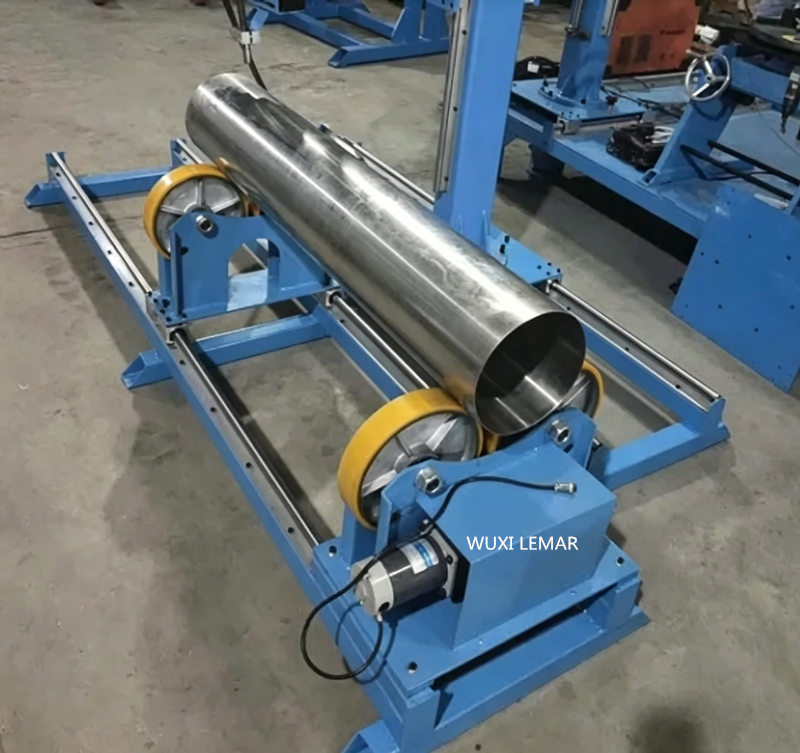

1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding
Product Overview

The 1 ton adjustable welding rotator is lightweight and compact welding auxiliary equipment developed for small cylindrical workpieces. Equipped with manually adjustable upper frame, users can adjust roller height and horizontal span freely to match different pipe and tank diameters. Compact body design occupies little workshop space, ideal for small processing factories, stainless steel workshops and laboratory equipment production. Frequency conversion drive ensures stable low-speed rotation without scratching thin-wall metal surfaces, greatly improving circular welding quality for small vessels.

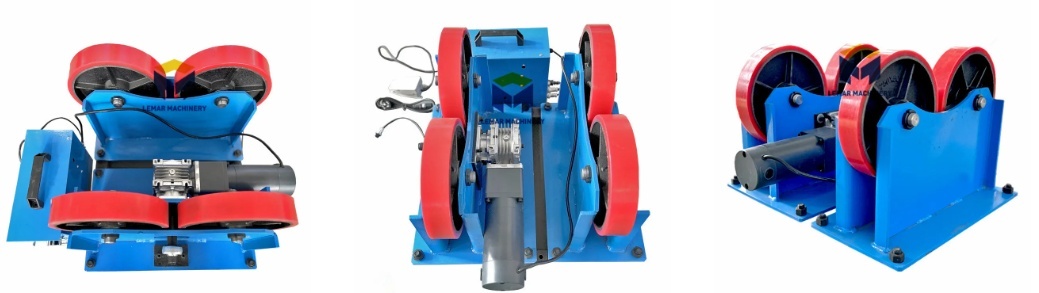

1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding 1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding
Technical Specifications
Parameter HGK-1 Adjustable Rotator
Rated Bearing Capacity 1000kg (1 Ton)
Applicable Workpiece Diameter 100-1500 mm
Roller Size Φ120 × 60 mm PU
Adjustable Height Range ±60 mm
Adjustable Roller Center Distance 180-800 mm
Rotation Speed 0.2 ~ 2 rpm
Surface Linear Speed 3 ~ 28 m/h
Driving Motor Power 2 × 0.37 KW
Control Type VFD digital control
Control Box Protection Class IP54
Total Machine Weight ~320 KG
Overall Dimension (L×W×H) 1600 × 650 × 820 mm
Manufacturing Excellence

We are a professional manufacturer of welding rotators with full production lines including CNC cutting, automatic welding and precision machining. All frames adopt post-weld stress relief treatment and pass full load testing before delivery. We support customized 0.5-200 ton welding turning rolls and export products to Southeast Asia, Middle East, Europe and South America. We provide pre-sales technical drawing, factory inspection, operation training and long-term spare parts supply.

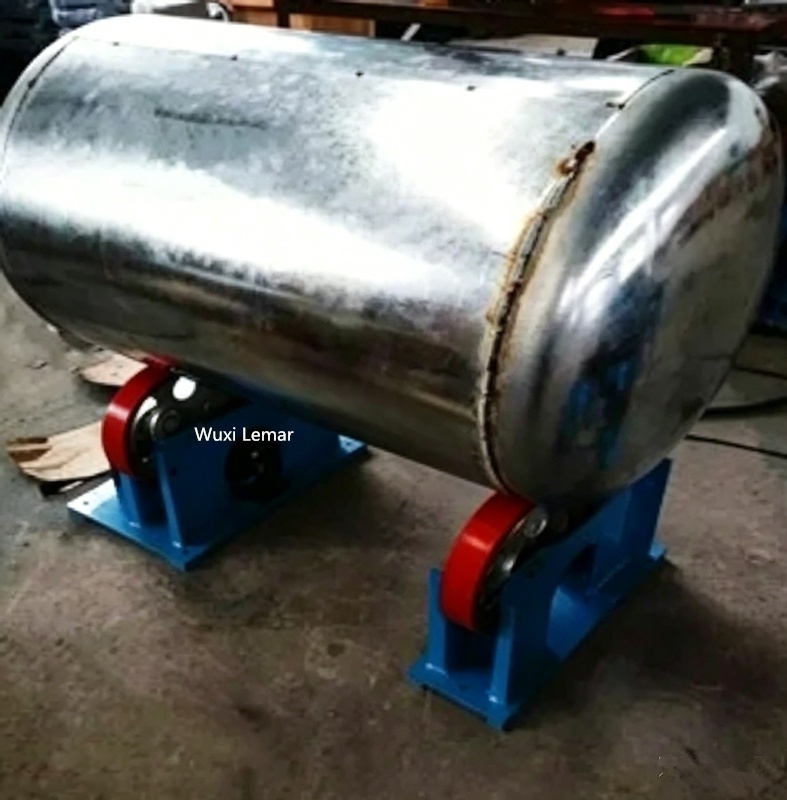

1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding
Core Advantages
Fully Adjustable Upper Frame

Vertical lifting and horizontal roller spacing are both adjustable by hand screw, suitable for workpieces with diameters from 100mm to 1500mm; fits straight cylinders and slight cone parts.

Anti-scratch PU Rollers

Standard polyurethane rollers avoid scratches on stainless steel, aluminum and polished carbon steel workpieces, low running noise.

Compact Light-Duty Structure

Integrated thickened small base with stress relief welding, light weight for easy movement inside workshop; stable under full 1-ton rated load.

Stepless Variable Frequency Control

0.2-2 rpm adjustable rotation speed with digital speed display; smooth rotation without crawling, perfect for thin-wall girth welding.

Complete Safety Protection

Control cabinet fitted with emergency stop button, overload power cut and short-circuit protection; locking handwheel prevents adjustable frame slipping during operation.

Low Cost & Easy Operation

Simple manual adjustment without hydraulic system, low purchase and maintenance cost; one-person operation without complicated training.

Application Industries
  • Stainless steel processing factory: small water tanks, filter barrels, thin-wall pipe welding
  • Laboratory equipment manufacturing: small reaction vessels, test cylinders
  • Hardware workshop: small pressure vessels, pipeline fittings
  • Decorative metal processing: artistic metal cylinders, handrail pipes
  • Small boiler & heat exchanger component production

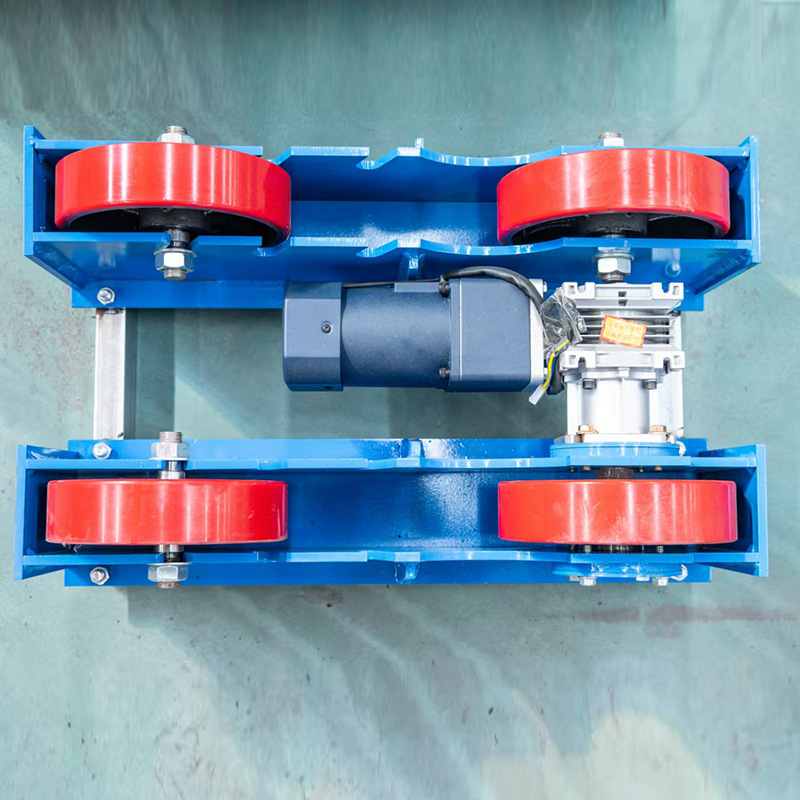

1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding
After-sales Service
  • One-year full machine warranty; motors, reducers and inverters enjoy 2-year free replacement warranty
  • 24-hour online technical support via email and WhatsApp
  • Free English operation manual and remote video guidance for installation
  • Cost-price spare parts supply permanently after warranty period expires
  • Overseas on-site installation training available upon request
1 Ton Adjustable Height Welding Rotator for Small Cylinder Welding
Frequently Asked Questions
Is this small 1-ton model suitable for thin stainless steel pipes?
Yes, standard PU rollers will not scratch polished stainless steel surfaces; low stable speed avoids workpiece vibration during welding.
Can it process conical small workpieces?
Yes, adjust two sides roller height difference via adjustable upper frame to tilt the workpiece for cone girth welding.
Can I add casters to move the roller frame easily?
Mobile caster base is optional extra accessory for flexible workshop transfer.
What's the difference between adjustable and fixed small rotator?
Adjustable upper frame fits multiple diameter workpieces, better for factories with diversified small workpieces; fixed model is cheaper for single-size mass production.
