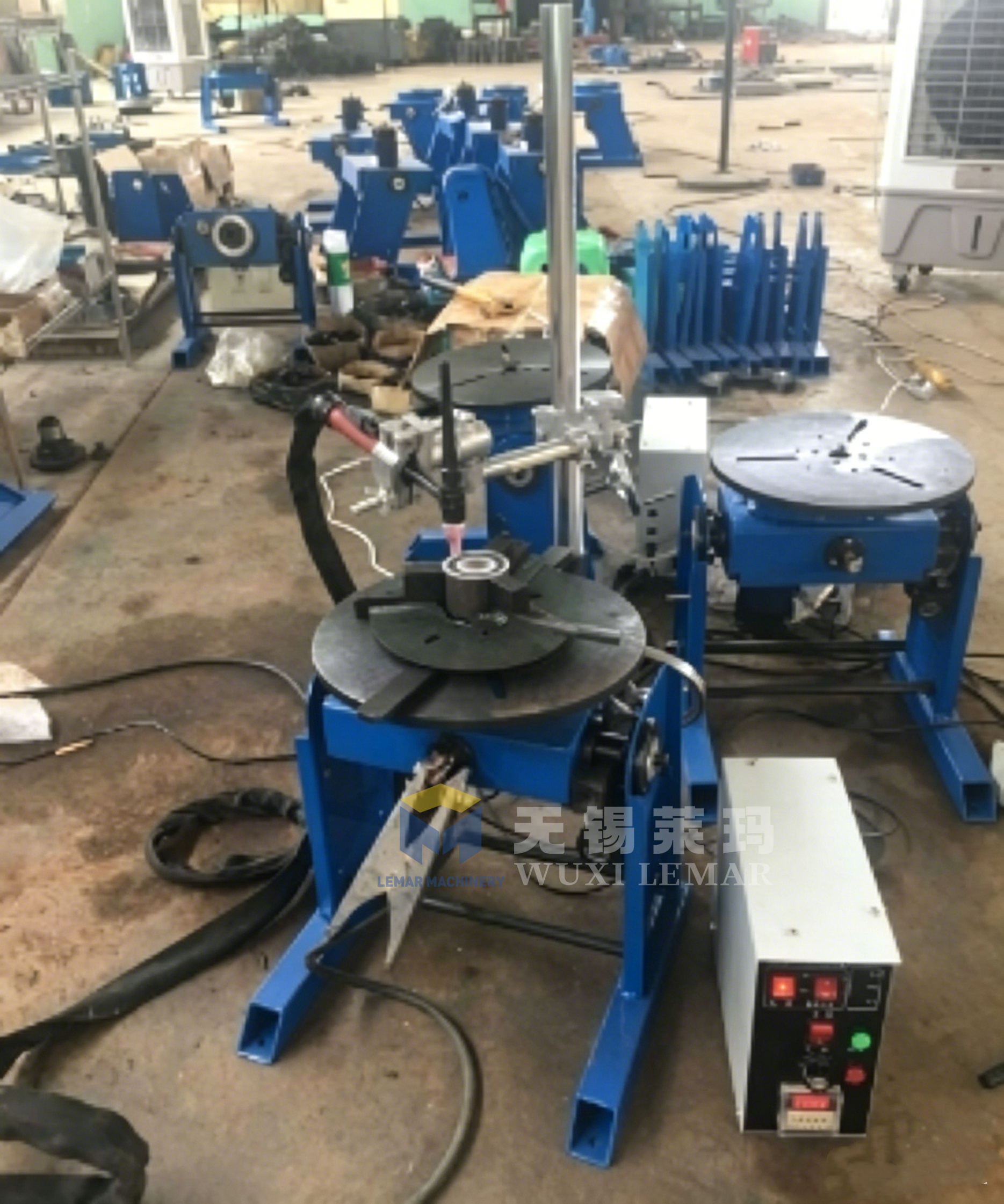

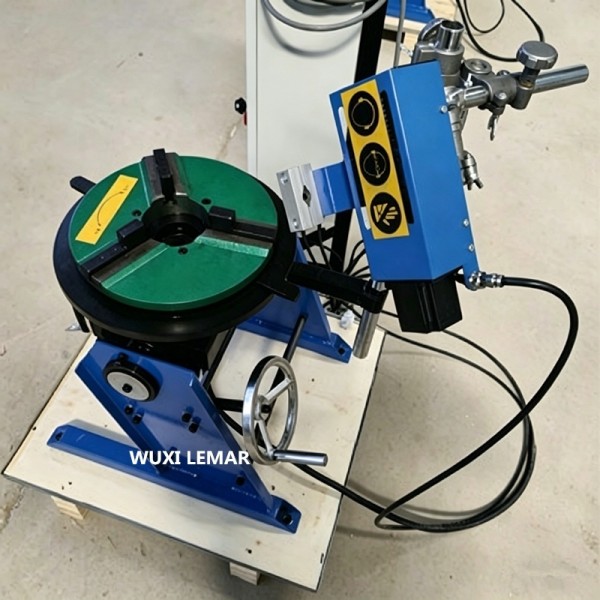

100kg Welding Positioner Turning Table for Pipe and Small Vessel Circumferential Welding

BWJ-100 welding positioner is a compact rotary welding turntable that can tilt and rotate workpieces flexibly, keeping welding seams in flat position to improve welding quality and working efficiency. Widely applied for flanges, pipe fittings, small tanks and stainless steel workpieces circumferential welding. Custom service is available upon request.

• Horizontal Rated Load: 100 kg, vertical allowable load up to 50 kg
• 0-90° manual tilting with worm gear self-locking structure, no slipping
• 0.5-5 rpm frequency stepless speed control, stable low-speed operation
• Rotary table equipped with T-slots and central through hole for pipe penetration welding
• Standard configuration with foot pedal switch to free operators' hands
• Compact and lightweight overall structure, convenient for workshop movement

• Stainless steel processing factory: small storage tanks, pipe fittings, connecting flanges, thin-wall cylindrical workpieces
• Hardware manufacturing plant: disc components, valve bodies, small cylinder structural parts
• Equipment production workshop: laboratory vessels, filter barrels, mini pressure vessels
• Pipeline processing workshop: pipe elbows, short pipe sections for circumferential seam welding
• Custom metal processing: metal crafts and rotary welded structural components

• One-year warranty for the whole machine; key components including rotation motor and frequency inverter enjoy a 2-year warranty period
• 24-hour online technical support via WhatsApp and Email for operational and technical questions
• Free English version operation manual with remote video guidance for installation, debugging and operation
• Spare parts supplied at factory cost price after warranty period expires
• Professional troubleshooting guidance for common failures during daily workshop operation
• Long-term technical archives maintained for each equipment set for follow-up service support
