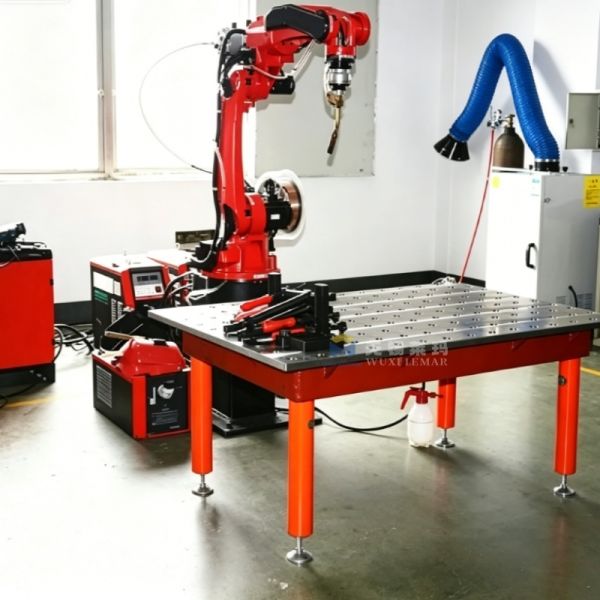

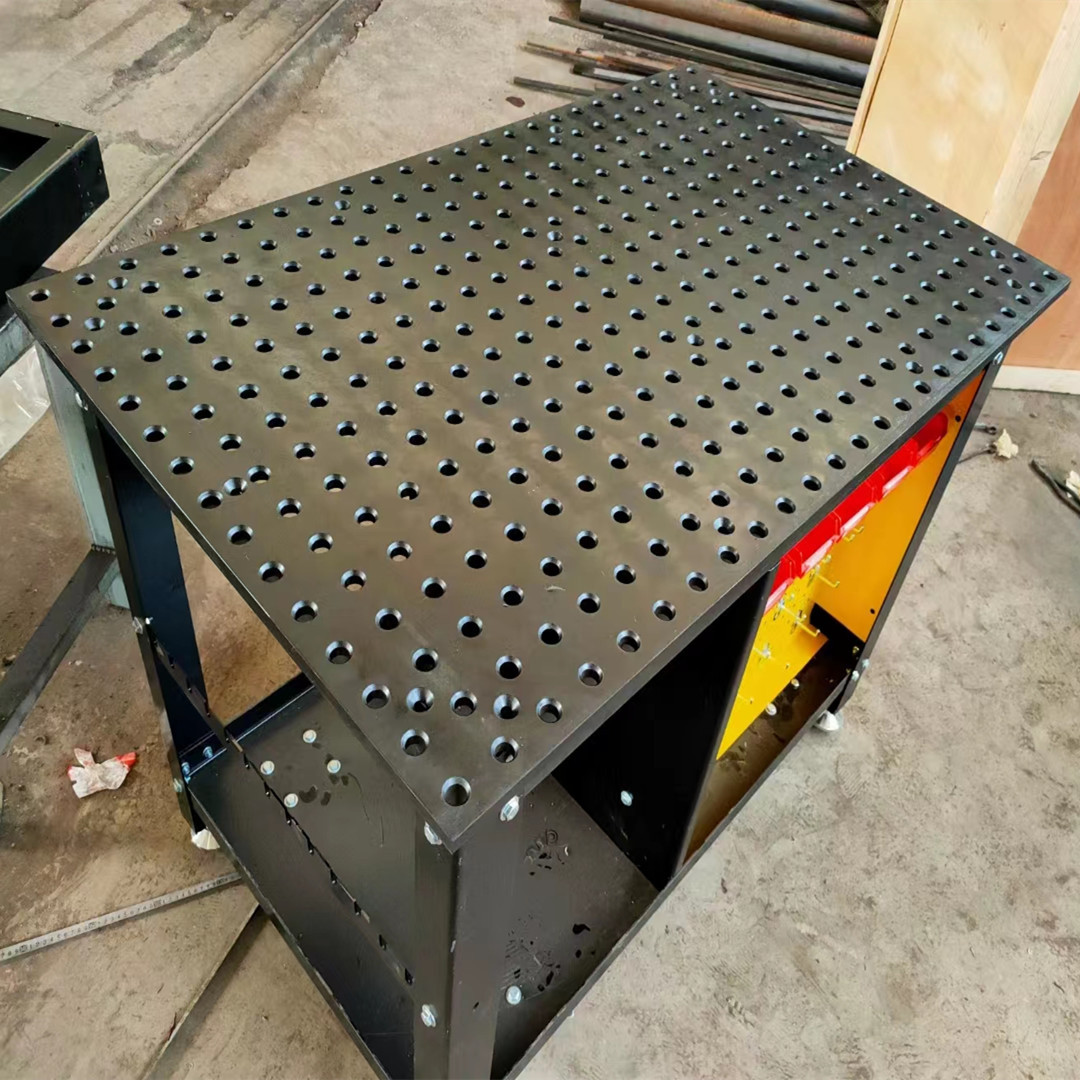

Nitride Steel 2D Welding Table Steel Welding Table Welding Fixture
Nitride Steel 2D Welding Table Steel Welding Table Welding Fixture is a basic flexible fixture for modern welding, with nitriding steel table top, standard grid holes, and modular fixtures as the core. It combines high precision, wear resistance, efficiency, and low cost, and is widely used in industries such as sheet metal, steel structures, automobiles, and construction machinery. It is an ideal solution to replace traditional flat iron plates/specialized fixtures.
Product Parameters
| Parameter |
D28 2D Welding Table |
D16 2D Welding Table |

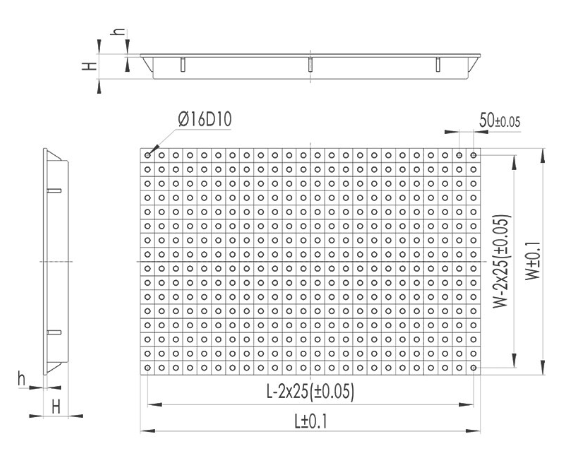

| Standard hole diameter |
Φ28 mm |
Φ16 mm |
| Hole pitch |
100×100 mm |
50×50 mm |
| Raw material |
Nitrided Q355 steel / HT300 cast iron |
Nitrided Q355 steel / HT300 |
| Surface hardness |
HV450-550 |
HV450-520 |
| Overall flatness |
≤0.3mm/1000mm |
≤0.3mm/1000mm |
| Hole position tolerance |
±0.05 mm |
±0.05 mm |
| Single hole bearing capacity |
800-1200kg |
300-600kg |
| Matched bolt |
M24 |
M12 |
Main Advantages
- Welding table surface hardness: HV450+/20-50HRC, wear-resistant and anti-collision
- Anti welding slag: Welding slag is easy to clean and does not adhere to the tabletop
- Rust and corrosion resistance: Long term use is not easy to rust, suitable for harsh workshop environments
- Low deformation: The nitride layer is thin (0.01-0.02mm), with minimal thermal impact and less likely for the tabletop to warp
- Compared to cast iron, steel nitriding tables have higher strength, better impact resistance, less prone to edge breakage, and better performance in heavy-duty and frequent fixture adjustment scenarios
Workflow Process
- Leveling of countertop: Adjust the foot cup to horizontal (accuracy 0.1mm/m)
- Fixture layout: According to the shape of the workpiece, use positioning pins and angle irons to set the reference, and quickly clamp with clamps
- Welding operation: The workpiece is firmly fixed without displacement, and the welding deformation is controllable
- Disassembly and replacement: Release the fixture and remove the workpiece; Within 5 minutes, rearrange the fixture and adapt it to the new workpiece
Company Certification
Product Packaging
FAQ
What table sizes do you have in stock?
Common ready sizes: 1000×800, 1200×800, 1500×1000, 2000×1500mm. Custom dimensions are available.
Do you offer OEM & ODM service?
Yes. We can print customer logo, customize surface marking, special hole layout and customized fixture sets.
How to maintain the welding table daily?
Just clear welding slag regularly, keep table surface clean, no need for complex maintenance.
Can you combine different tables into one big working table?
Yes. Multiple standard tables can be spliced freely to meet large-scale welding production needs.
Can the table board bear heavy pressure during welding?
Absolutely. Thickened solid steel plate, stable overall structure, no bending or sinking under normal heavy welding load.
