3D Flexible Fixture Clamp Positioning Welding Fixture Table Clamps Support Angle Iron

Applicable Platforms : D16/D28 3D Flexible Welding Platform

Supply Ability : 5000 units/month

Certification : CE

Parallelism : ≤0.10mm/200mm

Temperature resistance : ≤600℃

Warranty : 12 months (excluding damage caused by human error)

Model Number : D28/D16

Price : 1-100 USD

Surface treatment : Blackening/Gas Nitriding

MOQ : 1 SET

Payment Terms : D/A,L/C,D/P,T/T

Delivery Time : 7-15 work days

Locating hole tolerance : d10 level

Place of Origin : LEMAR

Verticality (working surface to mounting surface) : ≤0.15mm/200mm

Packaging Details : 3000*2000*300mm

Brand Name : WUXI LEMAR

Flatness : ≤0.1mm/m²

Contact Now

3D Flexible Platform Positioning Welding Fixture Support Angle Iron Fixture
3D Flexible Fixture Clamp Positioning Welding Fixture Table Clamps Support Angle Iron
The 3D flexible platform positioning welding fixture support angle iron fixture is the core support and positioning element in a three-dimensional flexible welding fixture system. It is used to support and position workpieces with high precision in three-dimensional space and provide a vertical reference plane. It is a key standardized accessory for welding, assembly and inspection.

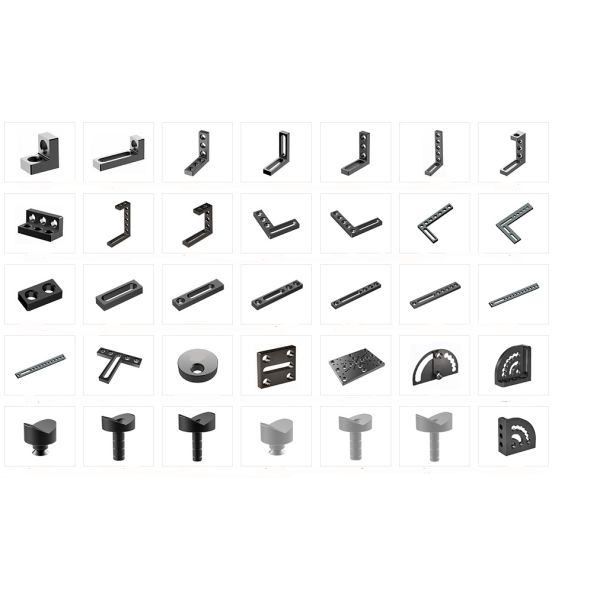

Positioning Components
A complete overview of the D28 / D16 product series
3D Flexible Fixture Clamp Positioning Welding Fixture Table Clamps Support Angle Iron

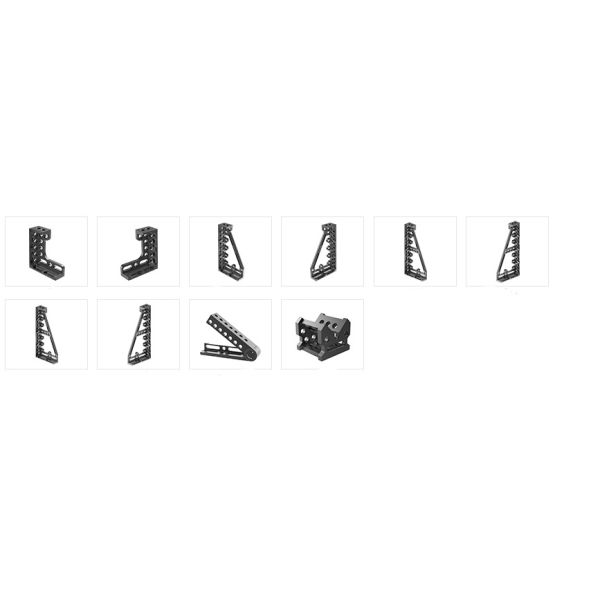

Support Components
A complete overview of the D28 / D16 product series
3D Flexible Fixture Clamp Positioning Welding Fixture Table Clamps Support Angle Iron
Functions and Roles
  • Three-dimensional support: Vertically supports the workpiece, creating a three-dimensional workstation
  • Vertical positioning: Provides a 90° reference plane to ensure workpiece perpendicularity
  • Extended platform: Combines with a platform and U/L square box to expand the working range
  • Rigid connection: Secured with quick-locking pins for fast assembly and disassembly and accurate repositioning
  • Auxiliary clamping: Works with a clamping device to firmly hold complex workpieces
3D Flexible Fixture Clamp Positioning Welding Fixture Table Clamps Support Angle Iron
3D Flexible Fixture Clamp Positioning Welding Fixture Table Clamps Support Angle Iron
Use Cases
  • Sheet metal / steel structure / chassis / chassis welding (multiple varieties, small batches)
  • Workpiece vertical, inclined, and 3D structural positioning
  • Multi-station flexible production lines, robotic welding workstations
  • Vertical reference for assembly, inspection, and scribing
3D Flexible Fixture Clamp Positioning Welding Fixture Table Clamps Support Angle Iron
Packaging, Transportation and After-sales Service
  • Packaging: Moisture-proof film + cardboard box/wooden frame, suitable for sea and land transportation
  • Transportation: Rigid and not easily damaged, can be shipped in consolidated containers
  • After-sales service:
    • No easily damaged parts under normal use
    • Minimal wear on holes, lifespan up to several years
    • Complete system design and selection support available
We offer customization services, selecting appropriate accessories based on the client's workpiece. Please contact me if needed.
Frequently Asked Questions
1. What's the lead time for mass order?
Standard items: 7-15 days. Customized sizes: 15-25 days.
2. What's your MOQ?
MOQ is 1 set / 2 pcs. Small trial order is acceptable.
3. Do you offer OEM / ODM service?
Yes. We can customize logo, size, hole pattern and packaging.
4. What trade terms do you accept?
FOB, CIF, CFR, EXW are all available.
5. What payment terms can you support?
T/T, L/C, , Trade Assurance.
6. How do you package the goods?
Standard export packing: plastic wrap + carton + plywood case, safe for sea shipment.
7. Can you provide product catalog and certification?
Yes. We can send catalog, technical drawing, CE certificate upon request.
8. Is after-sales service provided?
Yes. We offer technical support, installation guide and after-sales reply within 12 hours.
9. Can we visit your factory?
Welcome to visit our factory at any time. We can arrange pickup and reception.
10. Do you provide sample service?
Sample available. Sample fee will be refunded after formal order.
